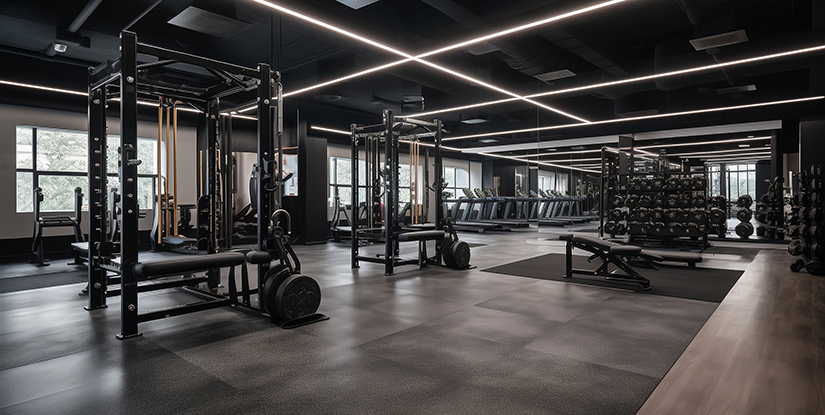

How to Plan a Gym Equipment Layout for Your Facility

Defining the Spatial Requirements for High-Traffic Zones

A common failure in facility management is treating a gym floor as a simple flat surface rather than a complex, multi-dimensional ecosystem. When planning how to plan a gym equipment layout for your facility, the first mistake is neglecting the distinction between 'equipment footprint' and 'operational footprint.' A treadmill might measure 2 meters in length, but it requires a significantly larger operational zone for user safety and airflow. If you fail to account for this, you will encounter high turnover rates and increased liability risks.

Professional operators must categorize space based on movement intensity and equipment weight. Heavy resistance training requires more substantial floor protection and different spacing than light cardiovascular zones. Before moving any machines, you must establish a baseline of absolute space requirements that includes the machine itself, the range of motion (ROM), and the safety clearance.

The Difference Between Footprint and Clearance

To avoid the trap of over-ordering equipment that doesn't fit, use the following technical distinction:

• Static Footprint: The actual dimensions of the piece of equipment when stationary.
• Dynamic Clearance: The space required during full movement (e.g., the arc of a barbell during a squat or the expansion of a cable machine's pulleys).
• Safety Buffer: The mandatory dead space between adjacent machines to prevent collisions and ensure unobstructed exit paths.

Establishing these buffers early prevents the 'crowded floor' syndrome, which directly impacts user satisfaction and facility longevity. Once these spatial boundaries are defined, the focus must shift to the technical flow of the facility.

Implementing Strategic Zoning for Enhanced Workflow

Building on the foundational spatial requirements, a sophisticated layout relies on functional zoning. A disorganized floor plan leads to 'traffic bottlenecks' where users in high-intensity areas inadvertently obstruct users in low-intensity areas. This is not just a nuisance; it is a safety hazard. For instance, a person performing heavy deadlifts should not be placed in a high-traffic thoroughfare where people are walking by with water bottles or towels.

Effective zoning groups equipment by physiological intent and mechanical similarity. This creates a logical progression for the user and optimizes the utility of your square footage. A professional layout typically follows a hierarchical structure of noise, impact, and intensity.

By utilizing these categories, you ensure that high-impact movements—like dropping a barbell—are isolated from areas where users are focused on low-intensity movements, like stretching or walking on a treadmill. With your zones mapped, the next critical step is the precise selection of equipment dimensions to ensure these zones function as intended.

Verification of Equipment Dimensions and Tolerance Ranges

The transition from a general zone concept to a concrete layout requires a rigorous verification of technical specifications. One of the most significant pain points for facility owners is receiving equipment that is technically sound but geometrically incompatible with the planned layout. This often occurs when an operator relies on a manufacturer's 'average' size rather than the specific 'maximum extension' specifications of a particular model.

When you are in the process of how to plan a gym equipment layout for your facility, you must demand the 'maximum working dimensions' from your suppliers. A cable crossover machine, for example, has a much larger width during full use than its base footprint suggests. If you do not verify these tolerances, you will face unexpected assembly costs and potential equipment damage due to wall or machine collisions.

Critical Dimension Checklist for Procurement

Do not accept a shipment without verifying these three critical variables against your floor plan:

• Vertical Clearance: Ensure the highest point of any machine (or a user performing a vertical movement) does not hit low-hanging light fixtures, sprinklers, or HVAC vents.
• Unobstructed Width: Confirm that the widest part of the machine's range of motion does not infringe upon the required safety buffer of the neighboring unit.
• Weight Distribution: For heavy lifting areas, verify that the equipment's weight-per-square-foot is within the structural load capacity of your floor.

Verifying these dimensions prevents the costly mistake of needing to move heavy steel once it has already been unboxed and assembled. Once the physical dimensions are accounted for, the focus turns to the practicalities of power and connectivity.

Integrating Essential Utilities and Power Requirements

A perfect layout on paper can fail instantly if the electrical and structural utilities are not strategically placed. A common oversight in the planning stage is placing cardio equipment or motorized accessories far from accessible power sources, leading to hazardous trailing cables or the need for expensive, permanent electrical work. This oversight often stems from a failure to reconcile the equipment list with the facility's existing electrical grid.

Modern commercial-grade equipment is increasingly reliant on stable electricity and data connections. Treadmills, interactive bikes, and smart-integrated strength machines require dedicated circuits to avoid tripping breakers during peak usage. Therefore, your layout must be a map of both equipment and utility access points.

Common Utility Placement Mistakes

Avoid these frequent errors by checking your layout against these specific failure modes:

• Cable Traps: Placing a motorized treadmill in a way that requires a cable to cross a main walking aisle, creating a major trip hazard.
• Power Overload: Grouping all high-wattage cardio equipment in a single circuit, leading to repeated power outages during busy hours.
• Data Blind Spots: Positioning smart equipment in areas with poor Wi-Fi or lack of Ethernet access, rendering their interactive features useless.

To mitigate these risks, your layout should include a secondary layer of information: a utility map that identifies every power outlet, data port, and plumbing fixture. Successfully integrating these utilities ensures that your equipment performs at its intended capacity without interruption. This leads directly into the crucial task of maintaining these systems through rigorous inspection.

Designing for Maintenance Accessibility and Longevity

A layout that looks beautiful but is impossible to service is a long-term liability. A highly polished, tightly packed equipment floor might maximize the number of machines per square foot, but it often creates a 'maintenance nightmare' where technicians cannot access the rear or sides of machines to perform routine servicing. If a technician cannot reach a motor or a pulley system without moving three other machines, your downtime increases and your maintenance costs skyrocket.

Professional operators prioritize 'service-first' spacing. This means leaving a dedicated access path for maintenance personnel, even if it slightly reduces the total number of machines you can fit. This is an investment in the total cost of ownership (TCO) of your facility assets. A machine that is down for three weeks because a technician couldn't reach a broken belt is a direct loss of revenue.

The Service Clearance Metric

Use this rule of thumb when finalizing your placement: Every piece of motorized or complex mechanical equipment should have a minimum of 60cm to 90cm of clear space on at least three sides for repair and inspection. This allows for the use of basic tools and the passage of a technician without disrupting the entire floor.

By designing for accessibility, you ensure that your maintenance schedule remains consistent and that small issues do not evolve into catastrophic failures. As we transition from the physical layout to the long-term management, the necessity of a regular inspection regime becomes apparent.

Ensuring Unobstructed Egress and Emergency Compliance

While the placement of equipment determines the aesthetic and functional flow, it also dictates the safety of every person in the building. A major risk in gym design is the 'clutter creep'—the tendency for users or staff to leave weights, mats, or accessories in designated walkways. If your layout does not strictly enforce clear egress paths, you are potentially in violation of local fire and safety codes.

A truly professional layout includes clear, permanent markings or structural dividers that signal where equipment ends and walkways begin. These paths must be wide enough for emergency personnel to pass through, even during peak hours when the facility is at its most crowded. An obstructed exit is not just a safety violation; it is a liability that can invalidate insurance coverage.

The Three Pillars of Safe Egress

To verify your layout's compliance, check it against these three pillars of safety:

• The Path of Least Resistance: Is there a clear, unblocked route from every corner of the facility to the nearest emergency exit?
• The Visibility Standard: Can a user in a heavy-lifting area see the exit signs clearly, or are they obscured by high-profile equipment like power racks?
• The Obstacle Threshold: Is there a strict policy and physical layout detail (like floor markings) to prevent weight plates or benches from being stored in transit lanes?

Consistent enforcement of these paths ensures that your facility remains a safe environment for all users. Once the layout is set and safety is verified, the final stage is the routine monitoring of the entire system.

Implementing Routine Operational Verification Cycles

The work of planning how to plan a gym equipment layout for your facility does not end once the last machine is bolted to the floor. A layout is a living entity that changes as equipment is added, retired, or moved. Without a structured verification cycle, the subtle changes in the facility—such as a slightly misplaced bench or an extra weight rack—can eventually degrade the entire functional flow and safety standards.

Professional operators implement a recurring audit process to ensure the actual floor state matches the engineered plan. This is not merely a visual check; it is a systematic verification of spatial integrity. You must treat your layout as a controlled configuration that requires periodic recalibration to maintain its high-performance status.

The Quarterly Layout Audit Checklist

To maintain your facility's standards, perform this audit every 90 days:

• Spatial Drift Check: Have any machines been moved or added that violate the original safety buffers or zone boundaries?
• Egress Integrity: Are all emergency exit paths still wide and unobstructed by new storage or equipment?
• Utility Load Review: Is the current power draw from the cardio/electronic zone still within the planned capacity, or has added equipment caused increased circuit strain?
• Wear and Tear Correlation: Are certain zones experiencing higher floor wear than planned? (This may indicate a need to redesign or reinforce that specific zone).

Regularly verifying your layout ensures that the high-level strategy you implemented at the start remains a functional reality for years to come. This concludes our deep dive into the technical requirements of facility planning.
